ASSIST FOR "SOLAS Ⅲ/19"
(MSC92/ENCLOSED SPACE ENTRY or RESCUE RESPONSIBILITIES)

WORKING LOAD :250KGS
WIRE LENGTH :6mm X 43M(Max)

DETAIL

TRIPOD	MATERIAL: HIGH TENSIL ALUMINIUM ALLOY LENGTH: D 48.6 x T 6.0 x L 2,400mm
TRIPOD HEAD	MATERIAL: FCD450 TEST LOAD:1,000KGS
TRIPOD BASE	MATERIAL: CAST IRON
WINCH	WORKING LOAD: 250KGS
WINCH BRACKET	MATERIAL: ANP79 / DK-2-T6
WIRE ROPE	WIRE LENGTH: 6mm x 43M(Max) MATERIAL: SUS304 7x19 BREAKING LOAD: 2.37tf
BLOCK	MATERIAL: STEEL SHEAVE DIA.: 100㎜ WORKING LOAD: 750kgs
CALCULATED WEIGHT	44.6kgs * WINCH CAN BE AVAILABLE IN COLOR VARIATION (RED AND YELLOW) DEPENDING ON USER REQUEST.
CERTIFICATE OF "NKKK".

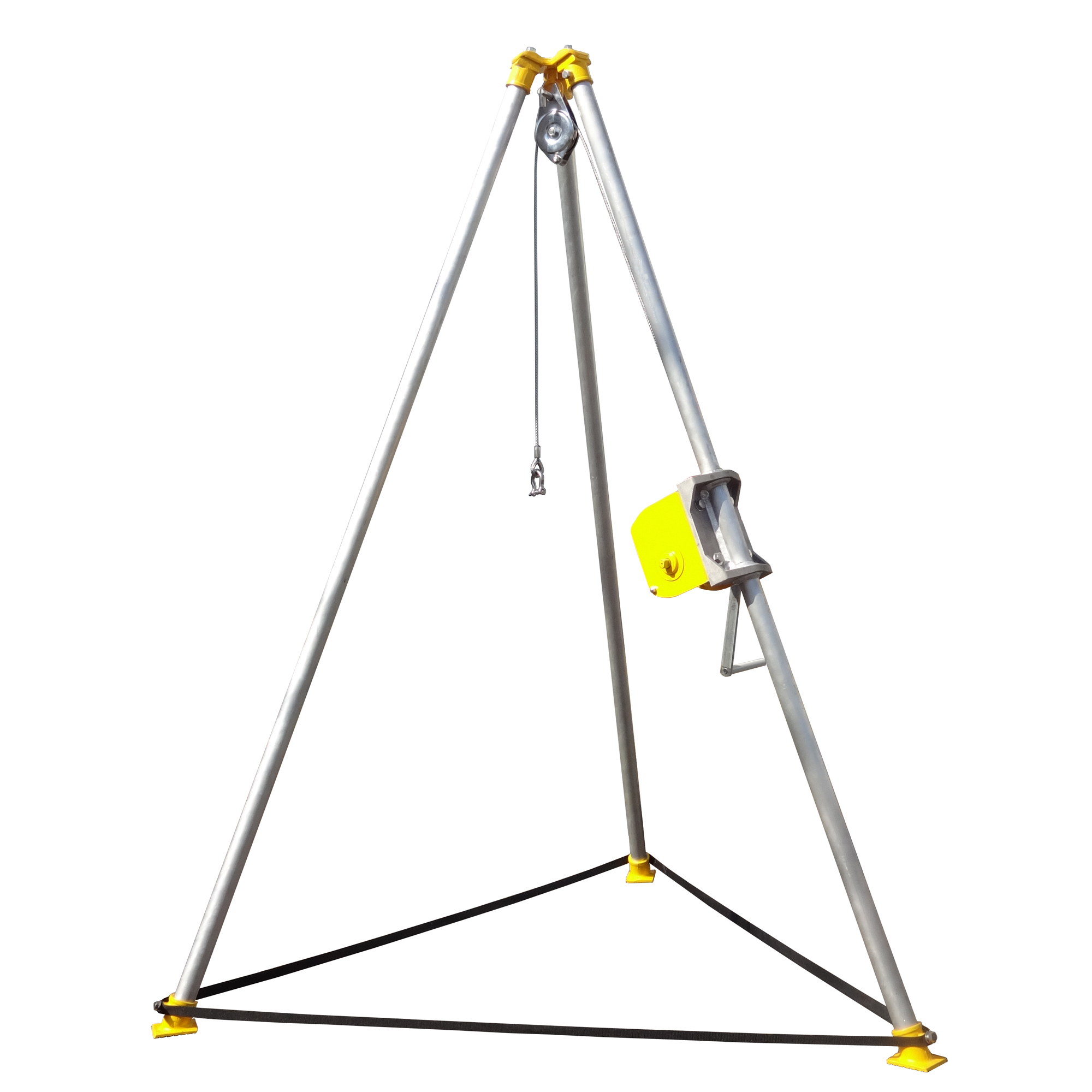

TRIPOD-LIFTER SPEC. & PARTS LIST.
